865-928Mhz Remote RFID Fixed Reader , 30dbm Long Range Rfid Card
Reader
Inventory 865-928Mhz Remote RFID Fixed UHF Card Reader With Impinj
R2000 Module
Features
l Self-intellectual property;
l 840~960MHz frequency band (frequency customization optional);
l Based on Impinj R2000 high performance RF engine, excellent multi-tag anti-collision
operation, fully support EPC CLASS1 G2 ISO18000-6B protocol tags
l FHSS or Fix Frequency transmission with maximum inventory speed over 700pcs;
l Support RSSI;
l RF output power up to 33dbm (adjustable);
l Support 8 TNC antenna port with antenna failure detection;
l Tag buffer: 1000pcs@96bitsEPC;
l Low power dissipation with single +9 DC power supply, POE (Power over Ethernet) is
optional;
l Support RS232, USB(Slave), RJ45 (TCP/IP) interface;
l Provide DLL and Demonstration Software Source code to facilitate further development;
l High reliability design, meet the requirements of harsh working
environment.

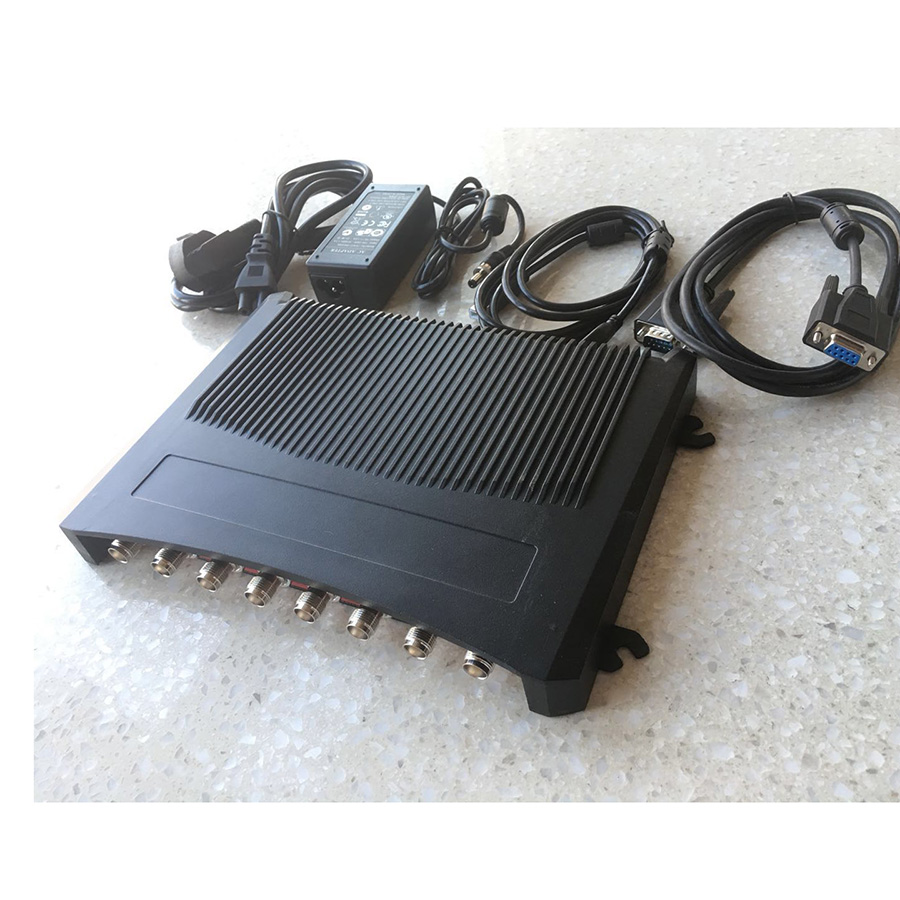

Sample Pictures
Mechanical Data
l Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 16 | V |
| Operating Temp. | TOPR | -20~+55 | ℃ |
| Storage Temp. | TSTR | -20~+85 | ℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 8 | 9 | 12 | V |
| Current Dissipation | IC | | 0.5 | 1.2 | A |
| Frequency | FREQ | 840 | 860~868 902~928 | 960 | MHz |
| Size | L x W x H | | 268 x181 x28 | | Mm |
Product Applications
1. Manufacturing management, goods flow management, warehouse management, and the flow management of mail, parcel and luggage,
etc.
2. Library management, school management, asset management, inventory management, attendance management, etc.
FAQ
1. Are you a factory?
Yes, we’re a factory that manufactured UHF RFID Readers and Antenna
since 2010. Warmly welcome to visit our factory!
2. We are not an expert buyer in your technology, what information
do you need from us to quote ?
Dear friend, please inform us clearly you use reader in what
working environment of project, what goal do you want to achieve,
we would propose you the suitable product in good price.
Our Service
1, 12 months warranty
2, ODM/OEM customization services according to your needs.
3, Completely Free SDK and technical support for you.
4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk
order
5, Fast Response: Reply inquiries within 24 hours
Using Note
The UHF RFID reader use radio influence technology, avoid to approach the metal as far as possible when using it. The radio wave will be affected by metal and reading distance will
be shorted when reader approach to metal.The UHF RFID reader
installation position should be far away from motor and transformer
etc, to reduce the impact on reader.
