860Mhz-960mhz UHF RFID Fixed Reader 4 Port UHF RFID Card Reader for Clothing management

General Description for uhf rfid fixed reader

ZK-RFID401is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

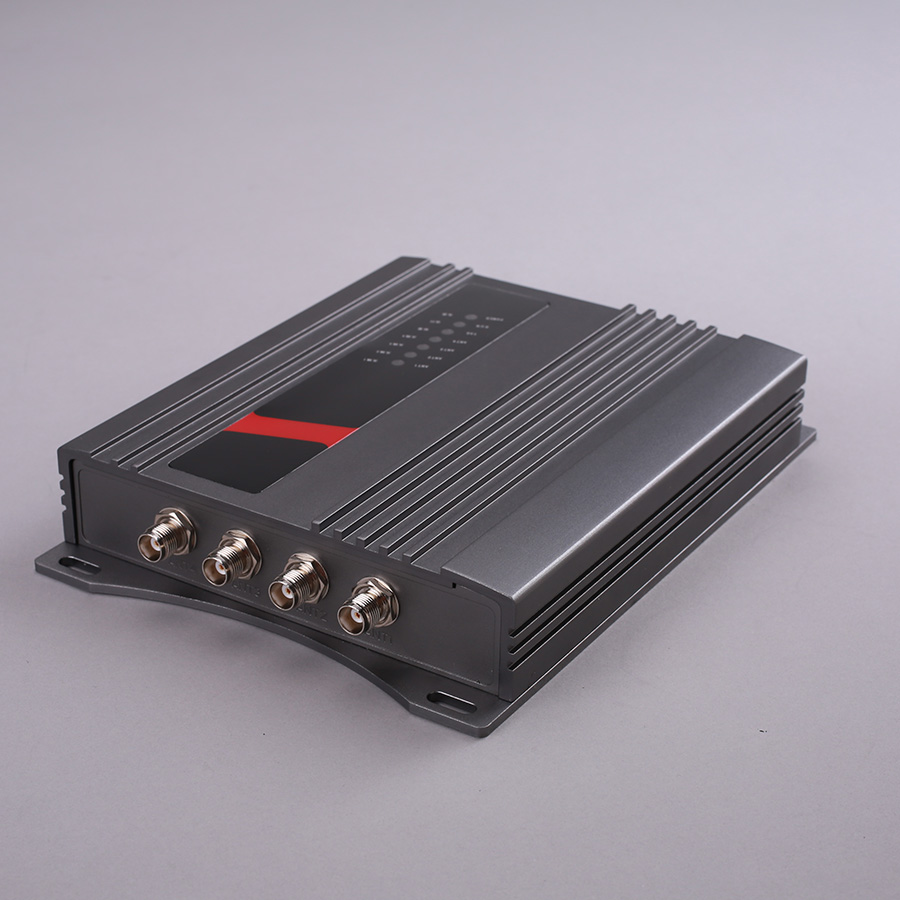

Uhf rfid card reader Pictures

Features

1. Self-intellectual property;

2. Frequency 840~960MHz(frequency customization optional);

3. Based on Impinj R2000 high performance RF engine,Support EPC CLASS1 G2,ISO18000-6B Protocol Tag;

4. FHSS or Fix Frequency transmission,Support RSSIFunction,Maximum inventory speed over 700pcs/s

5. RF output power up to 30dbm(adjustable);

6. Support 4 TNC antenna port with antenna failure-detection

7. Support answer and real-time-inventory work mode;

8. Tag buffer: 1000pcs@max. 96 bitsEPC

9. Support EPC and TID anti-collision operation;

10. Low power dissipation with single +9 DC power supply,POE (Power over Ethernet) is Optional;

11. Support RS232,USB(Slave),with optional RJ45(TCP/IP)etc interface;

12. Provide(DLL)and Demonstration Software Source code to facolitate further development

13. High reliability design, meet the requirements of harsh working environment.

Mechanical Specification

1.Power Connector DC JACK

2.USB Connector

3. UART RS232 (DB9 Female)

4. GPIO (DB15 Female)

5.TCPIP Network (RJ45)

6.TNC Antenna Port ANT1~ANT4

Product Applications

1. Manufacturing management, goods flow management, warehouse management, and the flow management of mail, parcel and luggage, etc.
2. Library management, school management, asset management, inventory management, attendance management, etc.

FAQ

1. Are you a factory?

Yes, we’re a factory that manufactured UHF RFID Readers and Antenna since 2010. Warmly welcome to visit our factory!

2. We are not an expert buyer in your technology, what information do you need from us to quote ?

Dear friend, please inform us clearly you use reader in what working environment of project, what goal do you want to achieve, we would propose you the suitable product in good price.

Our Service

1, 12 months warranty

2, ODM/OEM customization services according to your needs.

3, Completely Free SDK and technical support for you.

4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order

5, Fast Response: Reply inquiries within 24 hours

Using Note

The UHF RFID reader use radio influence technology, avoid to approach the metal as far as possible when using it. The radio wave will be affected by metal and reading distance will be shorted when reader approach to metal.The UHF RFID reader installation position should be far away from motor and transformer etc, to reduce the impact on reader.
