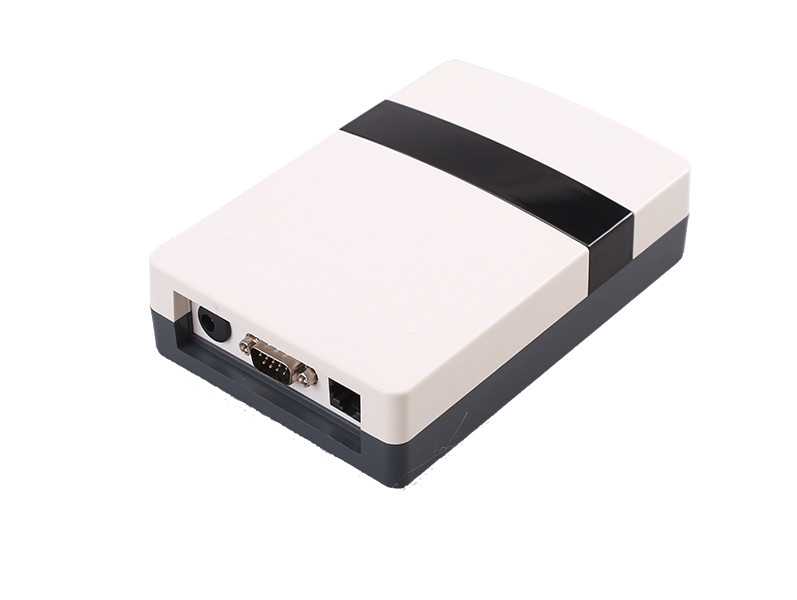

    Ethernet RS232 Interface High Read Performance UHF RFID Desktop Reader With LED Buzzer

    Ask Lasest Price
    Brand Name : ZKHY
    Model Number : ZK-RFID106
    Certification : CE Rohs FCC
    Payment Terms : Western Union, T/T,Paypal
    Supply Ability : 1000pcs per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    Ethernet RS232 Interface High Read Performance UHF RFID Desktop Reader With LED Buzzer

    Ethernet RS232 LED Buzzer high read performance UHF rfid reader for write tags


    it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.


    Specification:


    ModelZK-RFID107
    Working Temperature-10~+60℃
    Power supply5V/9V
    Storage Temperature-25~+80℃
    Working Frequency902-928Mhz/860-868Mhz
    Support ProtocolEPC Gen 2 (ISO18000-6C) ISO18000-6B
    Size160*110*42mm
    Net weight400g
    Communication InterfaceRS232,Wiegand 24/36 or USB
    Antenna Gain2dBi
    Effective Reading distance˃30cm
    Typ Power Dissipation3.15W/1.4W
    Interface Communication Rate115200bps can be customized
    BuzzerYes
    LEDRed(power indicator)Green(status indicator)
    EnclosurePlastic

    FEATURES
    l Self-intellectual property;
    l Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
    l 902~928MHz frequency band(frequency customization optional);
    l FHSS or Fix Frequency transmission;
    l RF output power up to 30dbm(adjustable);
    l Built-in wideband antenna with effect distance up to 500mm*;
    l Support auto-running and interactive work mode;
    l Low power dissipation with single +9V DC power supply;
    l SupportRS232 and Wiegand interface;
    l Output format and parameters configurable;
    l Provide SDK and demo software to facilitate further development.


    Application :


    ZK-RFID 107 is high perfomance UHF desktopreader.It can wide use in Jewelry store management ,access control system.It can easily white the card .


    Warehouse management:



    Ethernet RS232 Interface High Read Performance UHF RFID Desktop Reader With LED Buzzer
