Bluetooth USB UHF RFID Desktop Reader For Access Control And Anti - Counterfeit System for Andriod Phone

General Description

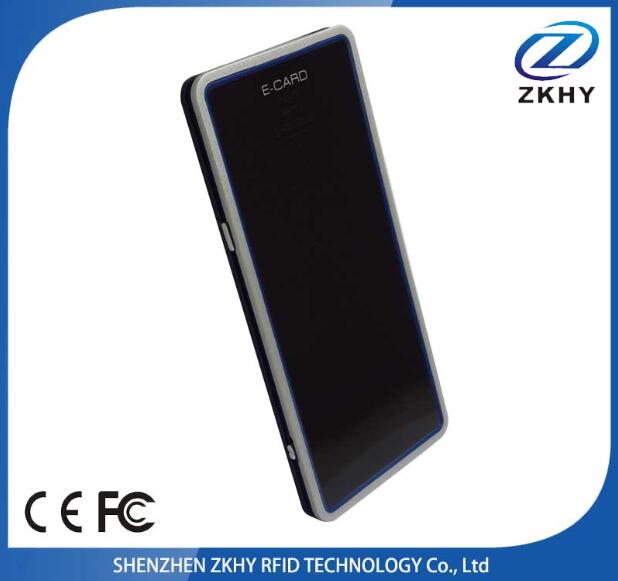

UHFREADER816UBT is a high performance and portable ISO18000-6C (EPC C1G2) Protocol UHF tag reader. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as stock management, traceability system, personnel identification, access control and anti-counterfeit system.

Features

1.Fashion, thin and well portable design;

2.Ultra low power design, over 3 hours continuous reading tag and over 1 day in standby;

3.Support interactive and trigger-activating work mode;

4.Support ISO18000-6C (EPC C1G2) protocol tag;

5.902~928MHz or 865~868MHz frequency band(frequency customization optional);

6.FHSS or Fix Frequency transmission;

7.Built-in TX/RX antenna with up to 1000mm effective distance;

8.RF output power from 0 to 26dbm (adjustable) with RSSI supported;

9.Multiple tag anti-collision>50pcs/s, multiple tag inventory speed>50pcs/s;

10.Tag buffer size: 370PCS Max.128bits EPC or 120PCS Max.496bitsEPC;

11.Support Bluetooth 4.0. Built-in lithium battery and no external power supply needed;

12.USB1.1 interface. Provide DLL and demonstration software to facilitate development;

13.Support USB charging and also the charging indicator, the low battery indicator;

Hot Products

Product Applications

1. Manufacturing management, goods flow management, warehouse management, and the flow management of mail, parcel and luggage, etc.
2. Library management, school management, asset management, inventory management, attendance management, etc.

1.What’s UHF RFID?

UHF RFID means 860 to 960 MHz band. The read range can be as long as 12m, UHF RFID has a faster data transfer rate than LF or HF and support multiple tags reading. UHF RFID is used in a wide variety of applications, ranging from retail inventory management, to pharmaceutical anti-counterfeiting, to wireless device configuration. The bulk of new RFID projects are using UHF opposed to LF or HF, making UHF the fastest growing segment of the RFID market.

2. Are you a factory?

Yes, we’re a factory that manufactured UHF RFID Readers and Antenna since 2010. Warmly welcome to visit our factory!

3. We are not an expert buyer in your technology, what information do you need from us to quote ?

Dear friend, please inform us clearly you use reader in what working environment of project, what goal do you want to achieve, we would propose you the suitable product in good price.

   Shenzhen ZKHY RFID Technology Co., Ltd. is committed to RFID products development, manufacture and distribution. ZKHY RFID products include UHF RFID Reader, Antenna and Accessories which cover almost all frequency. ZKHY has special RFID technology that allows us to make characteristic design and test according to site conditions.

   After 10+ year development, ZKHY not only has leading RFID core technology but also has independent intellectual property rights. Complete RFID solution and timely after-sale service can be provided. Based on special design, the main technical indexes of ZKHY products have achieved or exceeded world level.

   Follow the principle of “R&D first, technique lead”, ZKHY strives for high-level products as development direction, focuses on industry-leading technical breakthrough, dedicates ourselves to provide core equipment of IOT and whole RFID solutions for global customers. ZKHY products have been successfully used in many regions. We won high reputation after cooperate with many large companies to solve their technical bottleneck, development issue.

   We gathered the best RFID talent in China to build our RFID R&D center. The advanced anti-collision algorithm and high identification rate of our products are at leading level in the same industry among peers.

   ZKHY products are manufactured by our own production line. We use high-quality component to guarantee product integrity and technicality. We also build perfect service system to ensure proper product usage. ZKHY UHF Long Range RFID Reader, UHF Integrated Reader, UHF Fixed Reader, UHF Handheld Reader award highly praise from customers.

   As technology advancing, ZKHY will improve our product constantly. We will provide our customer with more high-quality products and excellent service in AVIM (Automated Vehicles Identification Management), Container Multi-modal Transportation Management, Logistics Recognition and Tracking Management, Person Multi-cluster and Multi-parameters Recognition, Conference Attendance, Enterprise Insider Management, Production Line Management…etc. in future.
