High Sensitivity Long Range Passive UHF RFID Reader for Vehicle
Management

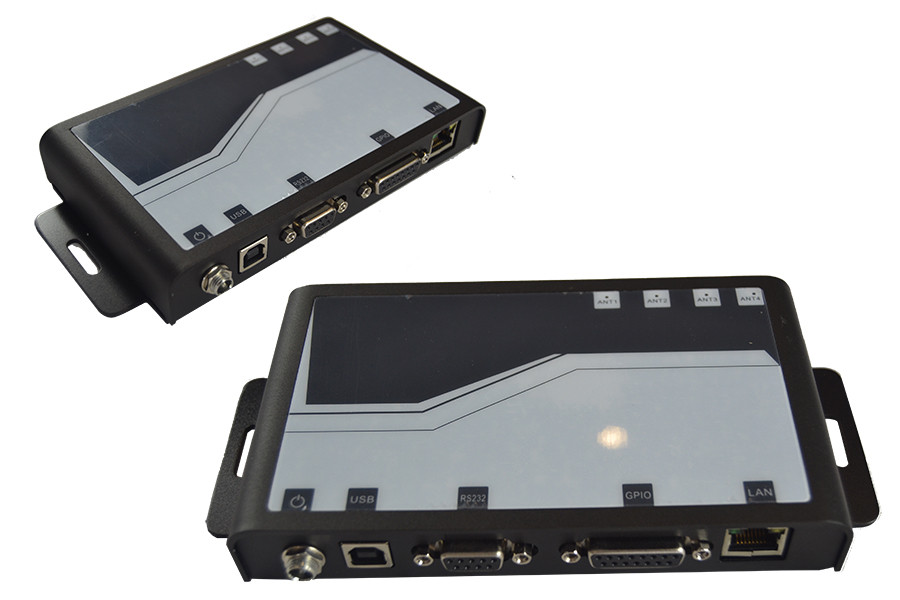

ZK_RFID403 4 channel fixed reader is a high performance UHF RFID
fixed reader. It is designed upon fully self-intellectual property.
Based on proprietory efficient digital signal processing algorithm,
it supports fast tag read/write operation with high identification
rate. It can be widely applied in many RFID application systems
such as logistics, access control, anti-counterfeit and industrial
production process control system.
Specification:
| Protocols | ISO18000-6B, ISO18000-6C (EPC CLASS1 G2 ) |
| Working frequency | 865~868MHz, 902-928Mhz(can be Customized) |
| Chip | Impinj R2000 |
| Interfaces | RS232/RS485, USB(Slave), GPIO,RJ45 with WiFi and POE optional |
| Output Port | 4 SMA Antenna Port with antenna atuo-tuning and failure-detection |
| RF output power | 0~30dBi(Adjustable) |
| Transmission mode | FHSS or Fix Frequency transmission |
| Working mode | Auto-running, answer,trigger-activating and real-time-inventory |
| Read Range | Depends on antenna gain |
| Write Range | Depends on antenna gain |
| Power Supply | DC+9V |
| Signal | Buzzer and LED |
| Storage temperature | -10- +55℃ |
| Operating temperature | -20 +75℃ |
| Item Size | 189*92*25mm |
| Net weight | 360g |
FEATURES
l Self-intellectual property.
l Based on Impinj R2000 high performance RF engine; Support
ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag.
l 860~868MHz/902~928MHz frequency band(frequency customization
optional).
l FHSS or Fix Frequency transmission.
l RF output power up to 30dbm(adjustable).
l Support 4 SMA antenna port with antenna auto-tuning and
failure-detection.
l Support answer and real-time-inventory work model.
l Support RSSI, maximum inventory speed over 500pcs.
l Tag buffer: 600pcs@max 128bits EPC or 180pcs@max 496 bits EPC.
l Low power dissipation with single +9 DC power supply.
l Support USB(Slave), RS232, RJ45(TCPIP) with POE optional.
l High reliability design.
CHARACTERISTICS
l Limiting Values
Item | Symbol | Value | Unit |
Supply voltage | VCC | 16 | V |
Operating temperature | TOPR | -10～+55 | ℃ |
Storage temperature | TSTR | -20～+75 | ℃ |
l Specifications
Unless specified,all the specifications under TA＝25℃ & VCC＝+9V
Item | Symbol | Min | Typ | Max | Unit |
Supply voltage | VCC | 8 | 9 | 12 | V |
Operating current | IC | | 0.5 | 1.2 | A |
Operating frequency | FREQ | 860 | 860~868 902~928 | 960 | MHz |
