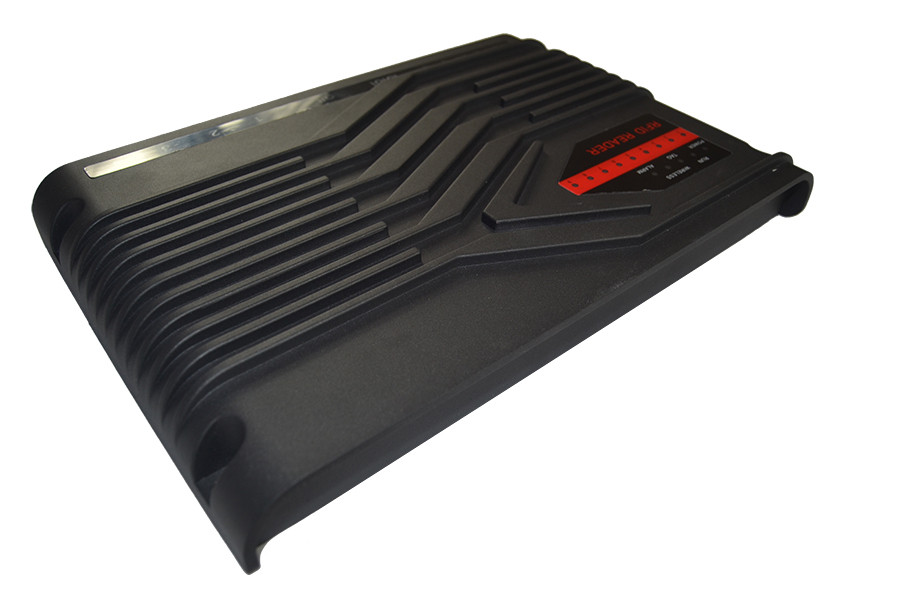

High Performance Impinj R2000 Chip 4 port Fixed UHF RFID Reader for Sport Timing System

ZK_RFID406 fixed reader is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems

Specification:

FEATURES:

 Self-intellectual property;
 Designed with Impinj R2000 RFID engine;
 Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
 860~868MHz/902~928MHz frequency band(frequency customization optional);
 FHSS or Fix Frequency transmission;
 RF output power up to 30dbm(adjustable);
 4 TNC antenna port with antenna auto-tuning and failure-detection;
 Support auto-running, answer, trigger and real-time-inventory work mode;
 Tag buffer size up to 800PCS (Max. 496bits EPC length);
 Support EPC and TID inventory;
 Low power dissipation with single +9 DC power supply;
 Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
 High reliability design;
 Support on-the-site firmware upgrading and optional Wince or Linux Operation System.

CHARACTERISTICS
 Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp. TOPR -10~+60 ℃
Storage Temp. TSTR -20~+75 ℃

 Electrical and Mechanical Specification
Under TA＝25℃,VCC＝+9V unless specified
ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC 8 9 12 V
Current Dissipation IC 800 1500 mA
Frequency FREQ 902 902~928 928 MHz
Size Size 310×210×41 mm

MECHANICAL DATA(UNIT mm):

INTERFACE

1. Power J1
No. Symbol Comment
2 PWR +9VDC
4 GND Ground
1 , 3 NC Reserved
2． WiFi Antenna J 2 (SMA Female)
3 . USB J3 (Slave)
4. USB J4 (Reserved)
5. TCPIP RJ45 Socket J5
6. UART J6 (RS232 DB9 Female)
No. Symbol Comment
1 NC Reserved
2 TXD Data output in RS232
3 RXD Data input in RS232
4 NC Reserved
5 GND Ground
6 NC Reserved
7 NC Reserved
8 NC Reserved
9 NC Reserved

7. GPIO J7 (DB15 Female)
No. Symbol Comment
1 Output1 General output1
2 Output2 General output2
3 Output3 General output3
4 Output4 General output4
5 Input1 General Intput1 with Internal 47k resistor pulled-down to ground
6 Input2 General Intput2 with Internal 47k resistor pulled-down to ground
7 Input3 General Intput3 with Internal 47k resistor pulled-down to ground
8 Input4 General Intput4 with Internal 47k resistor pulled-down to ground
9 TGIN Trigger input with internal 10k resistor pulled-up to +5V
10 R+ R+ in RS485
11 R- R- in RS485
12 GND Ground
13 NC Normal-Close terminal of internal relay
14 NO Normal-Open terminal of internal relay
15 CM Common terminal of internal relay

8． TNC Antenna Port1~Port4 J8~J11

9． LED indicator
Symbol Comment
POWER Power on indicator
RUN Command-executing indicator
TAG Tag-detected indicator
WIRELESS WiFi active indicator
ALARM Alarm indicator
1~9 RSSI indicator

Remark:
1. Specifications are subject to change, please pay attention to our latest version.P
