    Auto Running Work Mode RFID Integrated Reader 5m Passive Tag For Parking System

    Ask Lasest Price
    Brand Name : ZKHY
    Model Number : ZK-RFID101
    Certification : CE
    Price : negotiated price
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 2-3 working day
    • Product Details
    • Company Profile

    Auto Running Work Mode RFID Integrated Reader 5m Passive Tag For Parking System

    860-960MHz auto-running work mode 5m Passive tag UHF RFID parking system card reader

    >UHF card reader
    > RS485,RS232,Wiegand26,Wiegand34,RJ45(TCP/IP optional )
    > 860Mhz~960MHz,
    > Read range can up to 1 to 5 meters
    > Size: 227×227×60mm

    Product Description
    5 Meters uhf reader


    Introduction :
    ZK-RFID101 is a UHF card reader. With 860mhz-960mhz frequency, it can allow fast recognition and reaction. Its reading distance can reach 5 meters, allow users pass through conveniently.

    Main Features :

    . RS485,RS232,Wiegand26,Wiegand34,RJ45(TCP/IP optional )

    . 860Mhz~960MHz

    . Read range can up to 1 to 6 meters

    . Size: 227×227×60mm

    Main specification :

    Performance Index
    Frequency range860-960MHZ
    FM modeFHSS or fixed frequency, set by the software
    RF output30dBm adjustable
    Communication interfaceRS485,RS232,Wiegand26,Wiegand34,RJ45(TCP/IP optional )
    Communication rateSerial port 9600~115200bps,RJ45 10Mbps
    GP I/O interface12 pin + 4 pin
    Power dissipationaverage<5W
    Application softwareProvide with API SDK and VC, VB, Java application routines
    Tag Operation Performance
    Reading distance1-5 meters
    Air interfaceEPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B
    Mechanical and Electrical Performance
    Power supply9-12V DC
    InstallationEmbrace rod mounting
    Diameter of support rod40-50mm
    Humidity5%-95%, non-condensing
    Protection gradeIEC IP65
    Operation temperature-20°C to +60°C

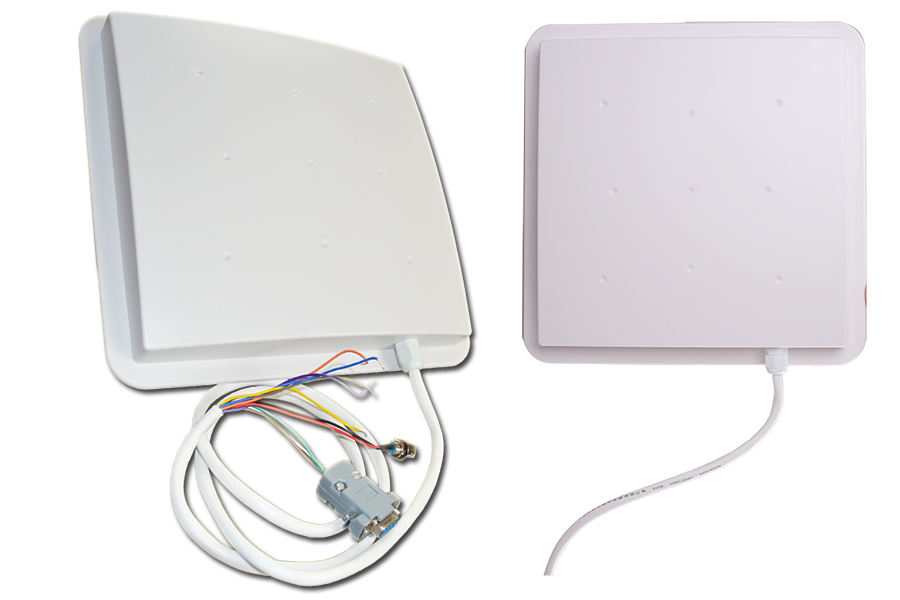

    Photo show
    Our service

    1, 12 months warranty
    2, ODM/OEM customization services according to your needs.
    3, Completely Free SDK and technical support for you.
    4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order
    5, Fast Response: Reply inquiries within 24 hours
