Free SDK Passive 5m long distance Multiple Protocol UHF 902~928MHz
RFID Reader
Advantage
Shell adopt high strength die-casting aluminum, firm and durable,
PCB is high density 6 layer board design, good for working under
bad environment for a long time.
high-performance multi-tag identification algorithms.
Low power consumption and low voltage design, guarantee the
products safe and stable operation for a long time.
| Support Protocol | ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag |
| Frequency | 902~928MHz frequency band(frequency customization optional) |
| Power | RF output power up to 30dbm(adjustable |
| Reading Distance | 8dbi antenna optional with effect distance up to 5m |
| Work Mode | Support auto-running, interactive and trigger-activating work mode |
| Power Supply | Low power dissipation with single +9 DC power supply |
| Support Interface | Support RS232, RS485, Wiegand interface |
Applications
Item can be widely applied in many areas,such as:
1.Logistics& warehouse management: goods flow management,warehouse management, etc.

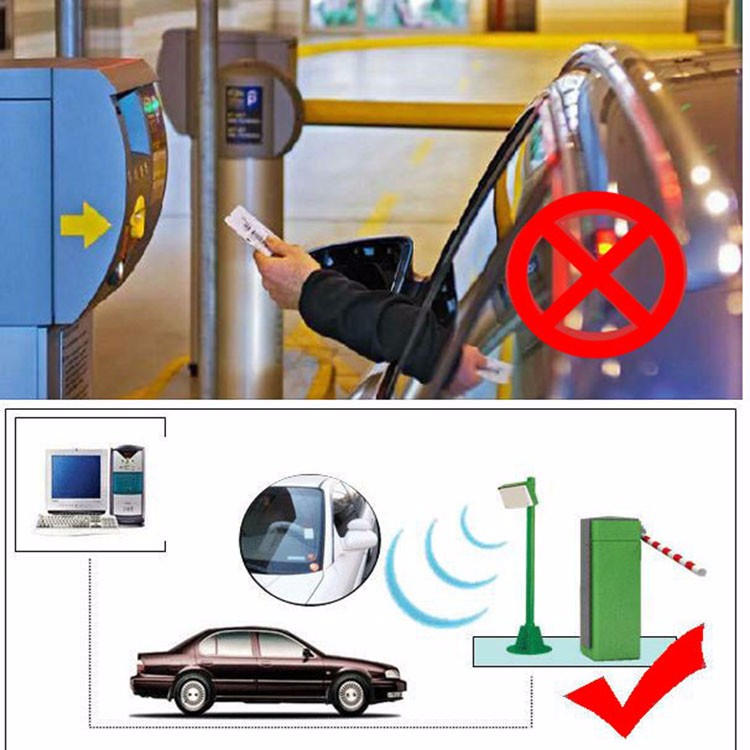

2.Intelligent parking management: parking lot management and automatic charge(E-Toll).
3.Production line management: fixed-point identification in production process.
4.Product counterfeit inspection: Using tag’s memory write-protect function to identify true-false
of products.
5.Other fields: Library management, school management, asset management, access
control, etc.
Characteristics
Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 16 | V |
| Operating Temp. | TOPR | -20~+70 | C |
| Storage Temp. | TSTR | -25~+80 | C |

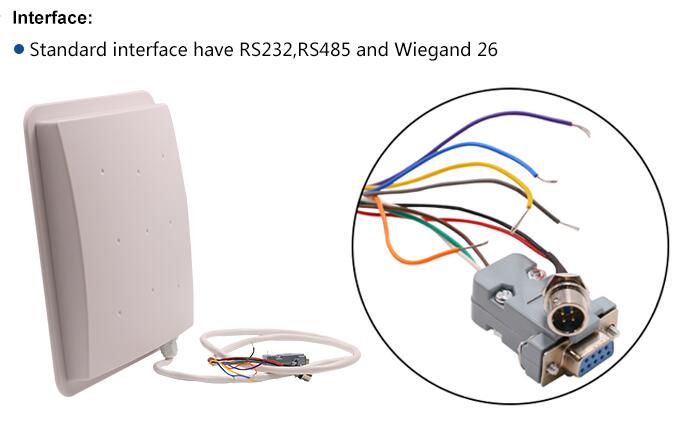

Interface
| ITEM | COMMENT |
| Red | +9V |
| Black | GND |
| Yellow | Wiegand DATA0 |
| Blue | Wiegand DATA1 |
| Purple | RS485 R+ |
| Orange | RS485 R- |
| Brown | GND |
| White | RS232 RXD |
| Green | RS232 TXD |
| Grey | Trigger input(TTL level) |
PS1: This model has US Standard(902-928 frequency) and EU
Standard(865-868 frequency)
PS2: The standard interface of model is RS232, RS485, Wiegand;
Besides, also has TCP/IP and WIFI interface.
User Manual
Step one: connect the adapter with power supply
Step two: Connect reader with PC /laptop through RS232 interface or
RS232-USB converter, put tag close to the reader
Step three:Open demo software, click "open com port"
Step four: Click "EPC GEN2 Test", click "Query tag", then the card EPC number
will output on the right list.
