Connecting up to 256 antennas UHF RFID Antenna Multiplexer for library management, document management

ZK-RFID909 is a high performance UHF RFID Card Reader antenna multiplexer system for networking and distributing UHF RFID antennae for real-time item level assets tracking and management. It also ideal choices for smart shelf, electronic label shelf and other RFID application.

FEATURES

l Self-intellectual property;

l Work frequency 860~960MHz;

l Master and slave unit design;

l All information exchange between master and slave go though RF cable and no extra communication cable needed.

l Master with 1 RF input connecting reader and 8 RF output ports;

l Slave with 1 RF input connecting master, 1 RF output for cascading and 8 RF output for antennae;

l Support 4 level slave cascading;

l Total 256 antennae supported;

l Support antenna scanning for its network topology and plug-and-play;

l Support RS232 and TCPIP interface;

l High reliability design for harsh environment.

l Low power dissipation design with single +9VDC supply;

MASTER INTERFACE

1.Power Supply DC JACK

2.MCX(Female)RF Output OUT1~OUT8

3.SMA (Female) RF Input RFIN

4.Indicator

Slave Interface

1.MCX RF Input IN

2.MCX RF Cascade Output OUT

3.MCX Antenna Port ANT1~ANT8

4.Working Indicator LED

CHARACTERISTICS

1. Absolute Maximum Rating

Multi-Ports RFID Card Reader Antenna Multiplexer

2. Electrical and Mechanical Specification Multi-Ports RFID Card Reader Antenna Multiplexer

Under T_A=25°C,VCC=+9V unless specified Multi-Ports RFID Card Reader Antenna Multiplexer

* Effective distance depends on protocol, tag and environment.

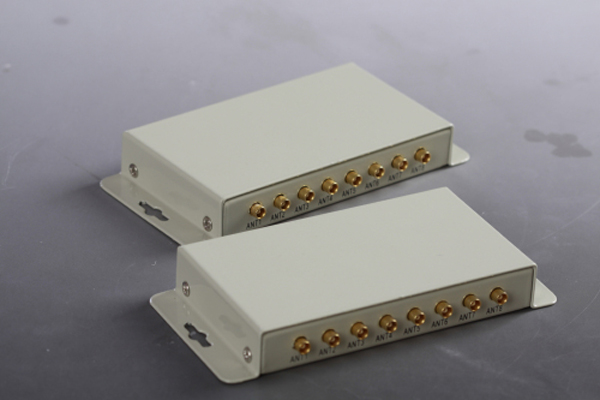

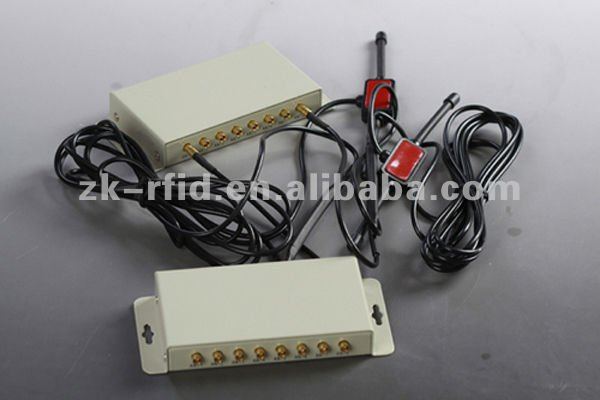

Product picture:
