Brand Name : | ZKHY |
Model Number : | ZK-RFID105 |
Certification : | CE |
Price : | negotiated price |
Payment Terms : | T/T, Western Union, Paypal |
Supply Ability : | 5000pcs/month |
Delivery Time : | 2-3 working day |

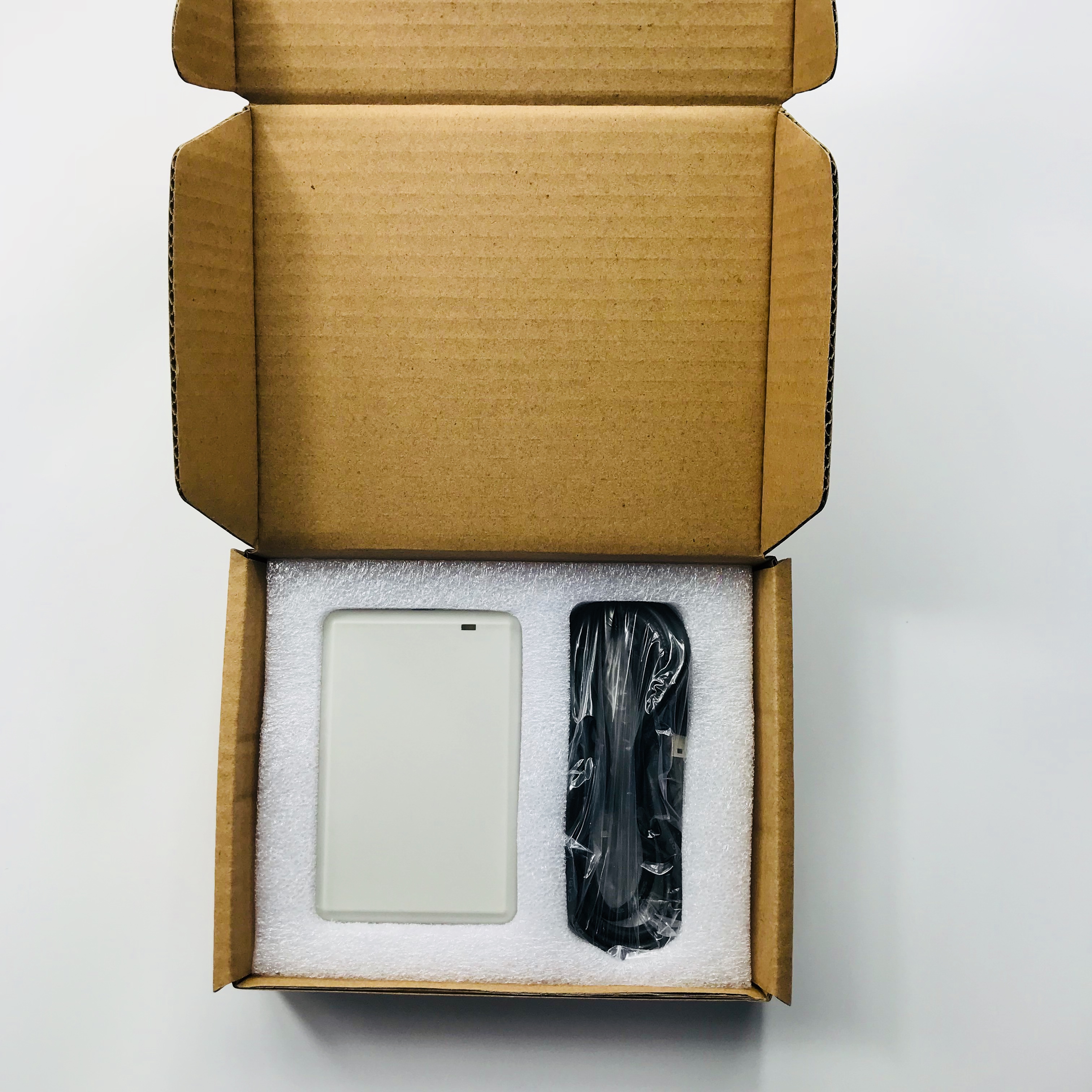

UHF Desktop Reader and writer
GENERAL DESCRIPTION
DH9809USB-L is a high performance UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES
Self-intellectual property;
Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
860~868MHz, 902~928MHz frequency band(frequency customization
optional);
FHSS or Fix Frequency transmission;
RF output power up to 13dbm(adjustable);
No external power source needed;
Built-in antenna with effect distance up to 180mm*;
Support USB2.0 interface with VSP(Virtual Serial Port) or HID
mode;
Slim outline;
Provide SDK and demo software to facilitate further development.
* Effective distance depends on protocol, tag and environment.
![]() |
